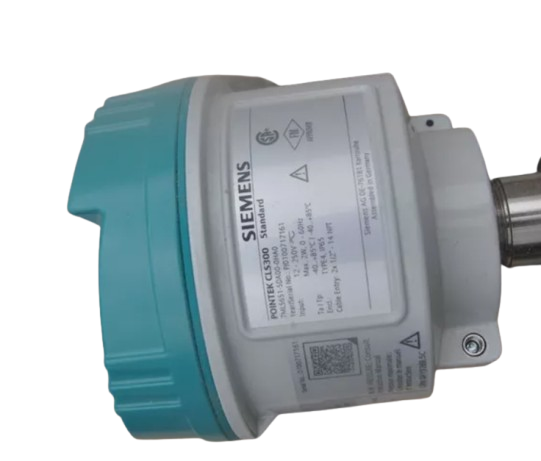

7ML5651-5DA00-0HA0 | Siemens Pointek CLS300 RF Capacitance Point Level Switch:

Siemens 7ML5651-5DA00-0HA0, a Pointek CLS300 RF Capacitance Point Level Switch:

Key Specifications:

1. Product Type: Pointek CLS300 RF Capacitance Point Level Switch.

2. Process Connection:

   • Welded flange, 316L stainless steel, raised face.
   • Size: 1 1/2" ASME, 150 lb.

3. Probe Type and Length:

   • Extended cable design.
   • Probe Length: 3000 mm (118.11 inches).
   • Can be shortened to fit application requirements.

4. Material:

   • Probe: Bare 316L stainless steel cable.
   • Isolators: PEEK.
   • Cable Weight: 316L stainless steel.

5. Enclosure:

   • Aluminum epoxy-coated housing.
   • Ingress Protection: IP65.
   • Cable Entry: 2 x 1/2" NPT via adapters.

6. Temperature and Pressure Range:

   • Operating Temperature: Suitable for standard industrial environments.
   • Pressure Rating: Compatible with ASME 150 lb specifications.

7. Electrical and Communication:

   • 4–20 mA output signal.
   • HART communication protocol support.

8. Certifications and Approvals:

   • General Purpose (CSA/FM).
   • Explosion-proof design for hazardous areas.

9. Active Shield Technology:

   • Prevents material build-up on the probe for consistent measurement accuracy.

10. Note: This product is non-refundable, and returns are not allowed as it is a limited-availability item.
