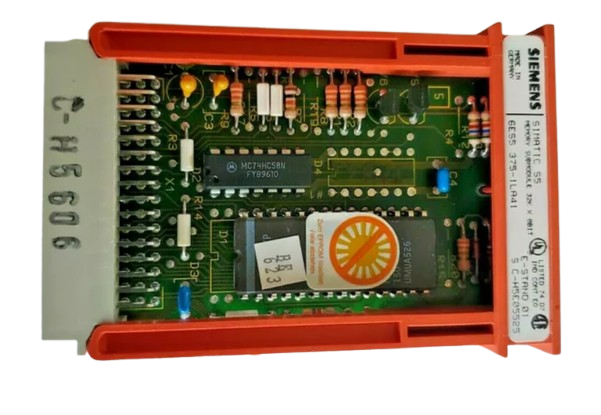

6ES5375-1LA41 SIEMENS CMOS-EPROM

The Siemens part number 6ES5375-1LA41 is a CMOS-EPROM memory module from the SIMATIC S5 series. This module is designed for use in industrial automation systems to store programs, configuration data, or firmware. It provides non-volatile storage, meaning data is retained even when the system is powered down.

Key Specifications

1. Memory Type:

   • CMOS-EPROM (Complementary Metal-Oxide Semiconductor - Erasable Programmable Read-Only Memory).
   • The data can be erased using UV light and reprogrammed as needed.

2. Memory Capacity:

   • 32 KB, which is suitable for storing moderate-sized user programs or system configurations.

3. Compatibility:

   • Compatible with Siemens SIMATIC S5 PLCs (Programmable Logic Controllers).
   • Designed to fit into the EPROM slots of these PLC systems.

4. Programming:

   • The module requires a compatible EPROM programmer to write data onto it.
   • Can store application-specific firmware, logic, or configurations.
   • Once programmed, the memory module can be inserted into the PLC system for execution.

5. Voltage and Power:

   • Operates within the standard power requirements of SIMATIC S5 systems.
   • Interfaces seamlessly with the PLC's power and control logic.

6. Non-Volatile Storage:

   • Retains stored data without requiring continuous power.
   • Ideal for applications where configurations or programs need to persist across power cycles.

Applications

• Industrial Automation:

  • Used in PLCs for process control, monitoring, and automation in industries such as manufacturing, energy, and transportation.

• Firmware Storage:

  • Stores and executes firmware required to run specific automation tasks.

• Configuration Backup:

  • Acts as a backup for configurations or programs, enabling easy replacement or recovery of system data.

Benefits

1. Reliable Non-Volatile Storage:

   • Ensures programs and configurations are not lost during power outages.

2. Reusability:

   • Can be erased and reprogrammed as needed (with proper UV equipment).

3. Scalability:

   • Works seamlessly with modular SIMATIC S5 PLC setups.

4. Ease of Integration:

   • Plug-and-play compatibility with SIMATIC S5 systems simplifies installation.

Limitations

1. Programming Requirement:

   • Requires an EPROM programmer for erasing and writing data.

2. Legacy System:

   • Designed for older SIMATIC S5 systems, which might not be compatible with newer Siemens controllers or systems.

3. Capacity:

   • Limited to 32 KB, which may not be sufficient for complex or modern applications requiring larger storage.

Replacement Considerations

If you're looking to replace an EPROM in your system with this module:

1. Ensure firmware compatibility: The program or firmware must fit within the 32 KB capacity and be compatible with the SIMATIC S5 system.
2. Verify physical and electrical compatibility: Ensure the module fits the EPROM slot and matches the system's voltage requirements.
3. Program before installation: Use an EPROM programmer to write the necessary data before installing it into your system.
